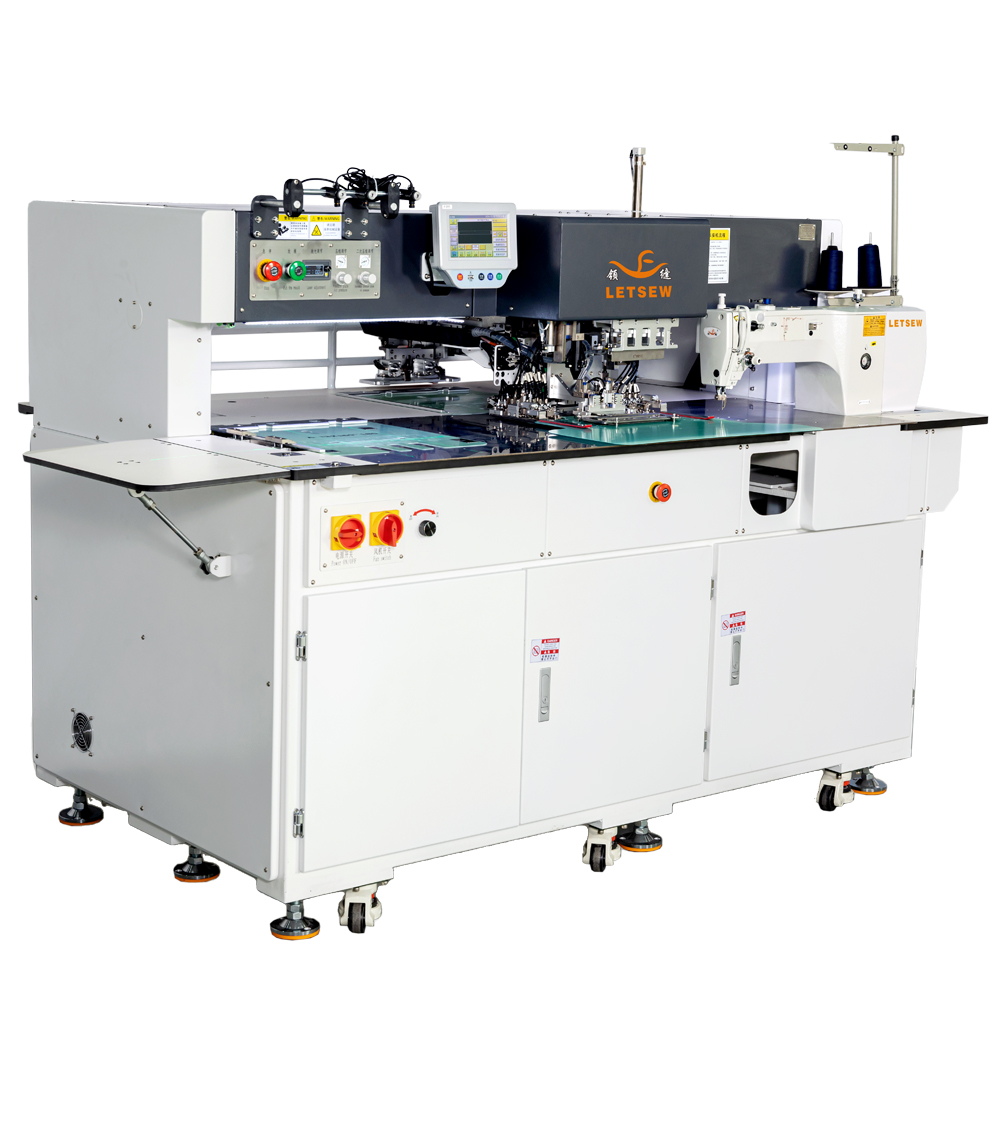

LF-Y5 原身袋款全自动开袋机

主要功能

1.加长托料板袋布不移位
Wider support plate;pocket fabric does not shif
2.紧贴台面折料避免频繁调机
Work close to the surface Avoid frequent adjustments.
3.特定原身袋夹具
Specific original pocket fixture
4.外折边结构稳定性更强
Outward folding edge structure stronger stability
5.原身袋款 原身布折边
Original body pocket style; original fabric folded edge.
6.中压脚装置 线迹美观
Mid-pressure foot device;Beautiful sewing stitch

播放
播放
播放

产品介绍

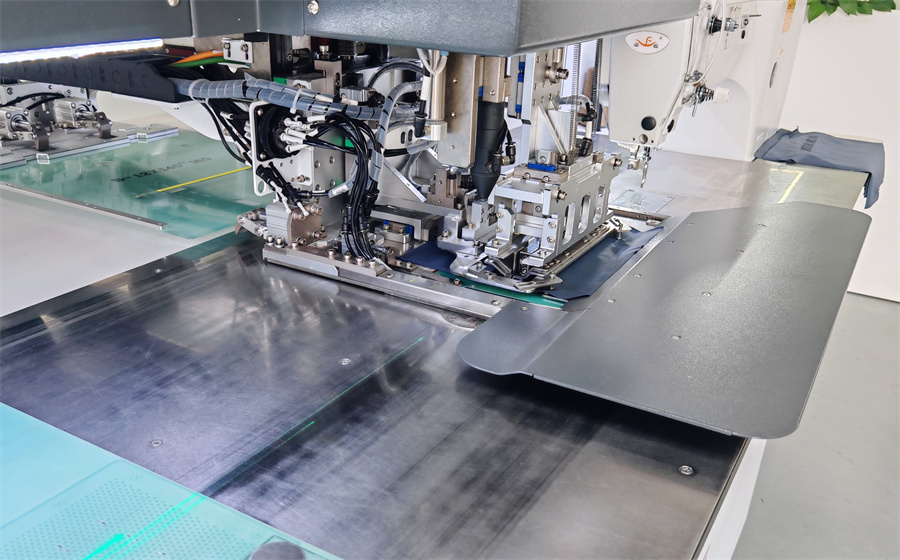

加长托料板袋布不移位Wider support plate;pocket fabric does not shif

紧贴台面折料避免频繁调机Work close to the surface Avoid frequent adjustments.

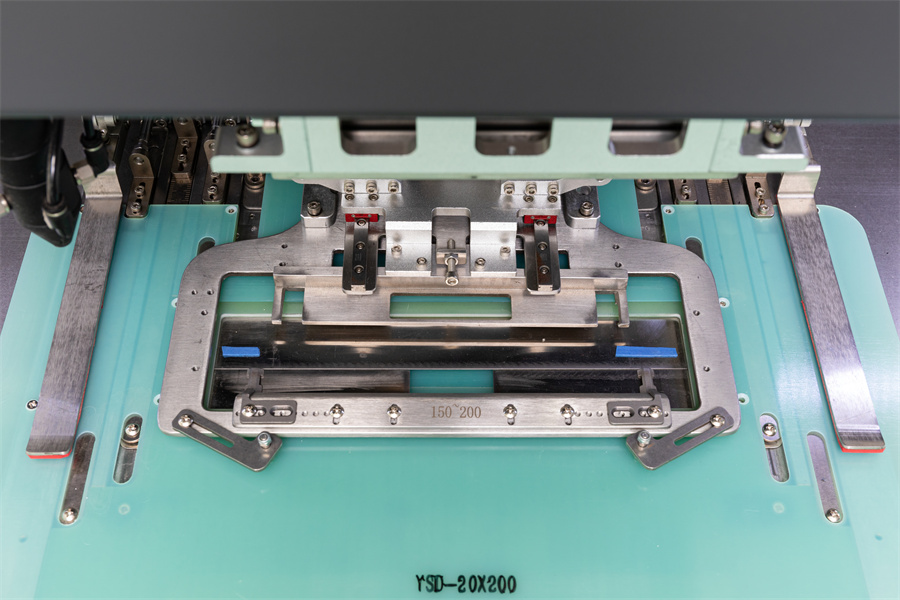

特定原身袋夹具Specific original pocket fixture

外折边结构稳定性更强Outward folding edge structure stronger stability

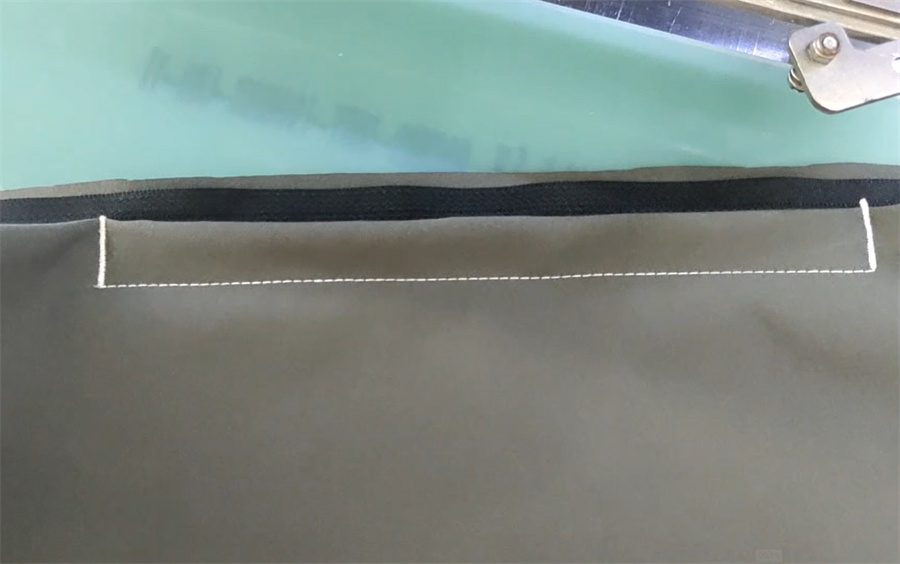

原身袋款 原身布折边Original body pocket style; original fabric folded edge.

中压脚装置 线迹美观Mid-pressure foot device;Beautiful sewing stitch
加长托料板袋布不移位Wider support plate;pocket fabric does not shif
紧贴台面折料避免频繁调机Work close to the surface Avoid frequent adjustments.
特定原身袋夹具Specific original pocket fixture
外折边结构稳定性更强Outward folding edge structure stronger stability
原身袋款 原身布折边Original body pocket style; original fabric folded edge.
中压脚装置 线迹美观Mid-pressure foot device;Beautiful sewing stitch

产品参数

型号 ModelLF-Y5
额定功率 Rated power常规1.2kw(峰值:2.8kw) Regular 1.2kw (Peak: 2.8kw)
额定电压 Rated vol220V单相50Hz(有地线) 220V single phase 50Hz (with ground wire)
缝纫针距 Stitch length0.1mm-5mm
速度设定 Speed setting100-3000转/分钟  100-3000rpm/min
缝纫机针 Sewing machine needleDpX17(9#-22#)
使用梭床 Shuttle bed摆梭   Pendulum, shuttle
压脚上升高度 Presser foot lift height0-25mm
激光功率 Laser power120W
主轴电机 Main shaft motor直驱式750W伺服电机 Direct drive 750W servo motor
控制系统 Control system微电脑控制  Microcomputer control
缝制范围 Sewing rangeWidth:0.8-4cm  Length:3-22cm
缝制范围(定制) Customized sewing scopeWidth:0.8-1cm/2.5-4cm  Length:3-7cm/20-22cm
使用气压 Air pressure0.6Mpa
机器净重 Machine N.W.960kg
机器尺寸 Machine size204cm(Length)*130cm(Width)*143cm(Heigth)
