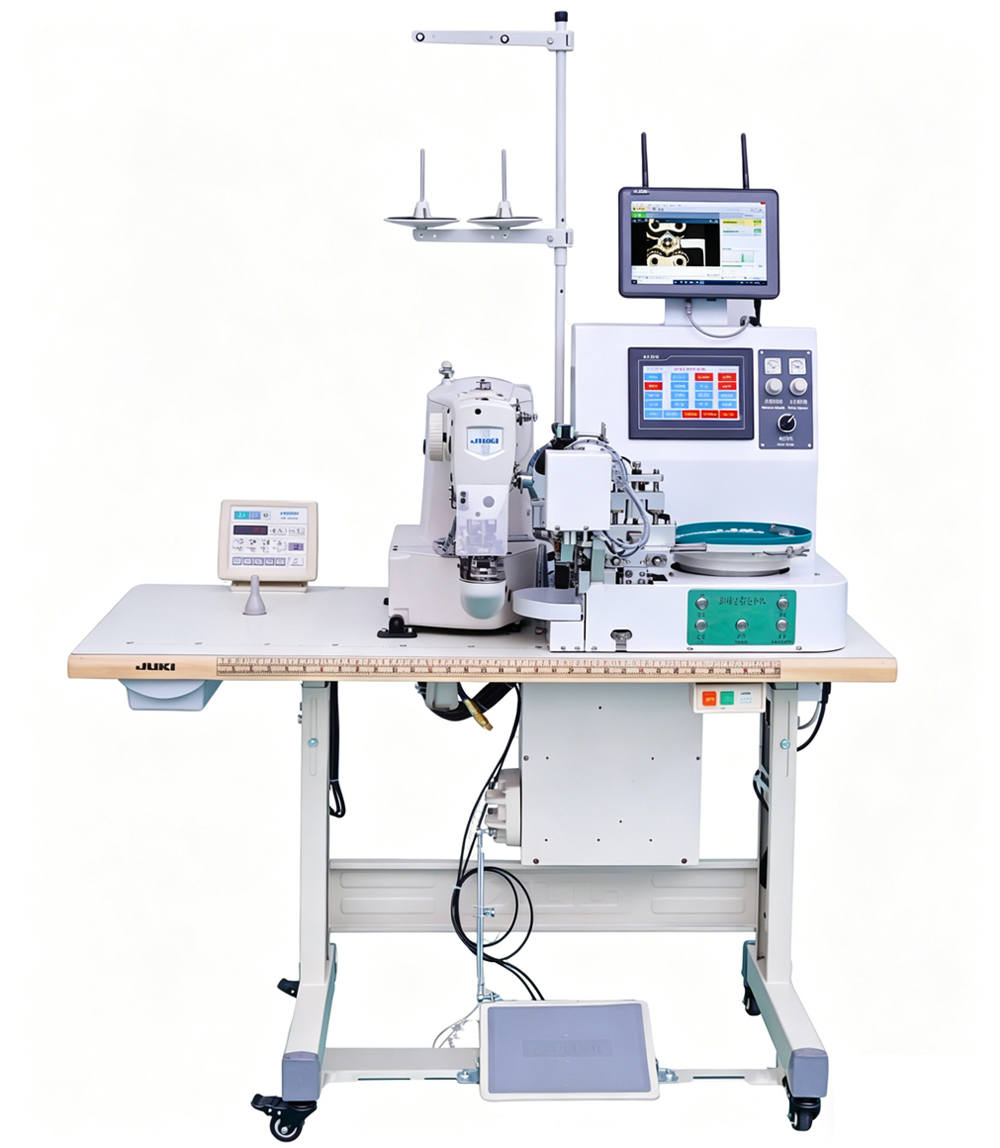

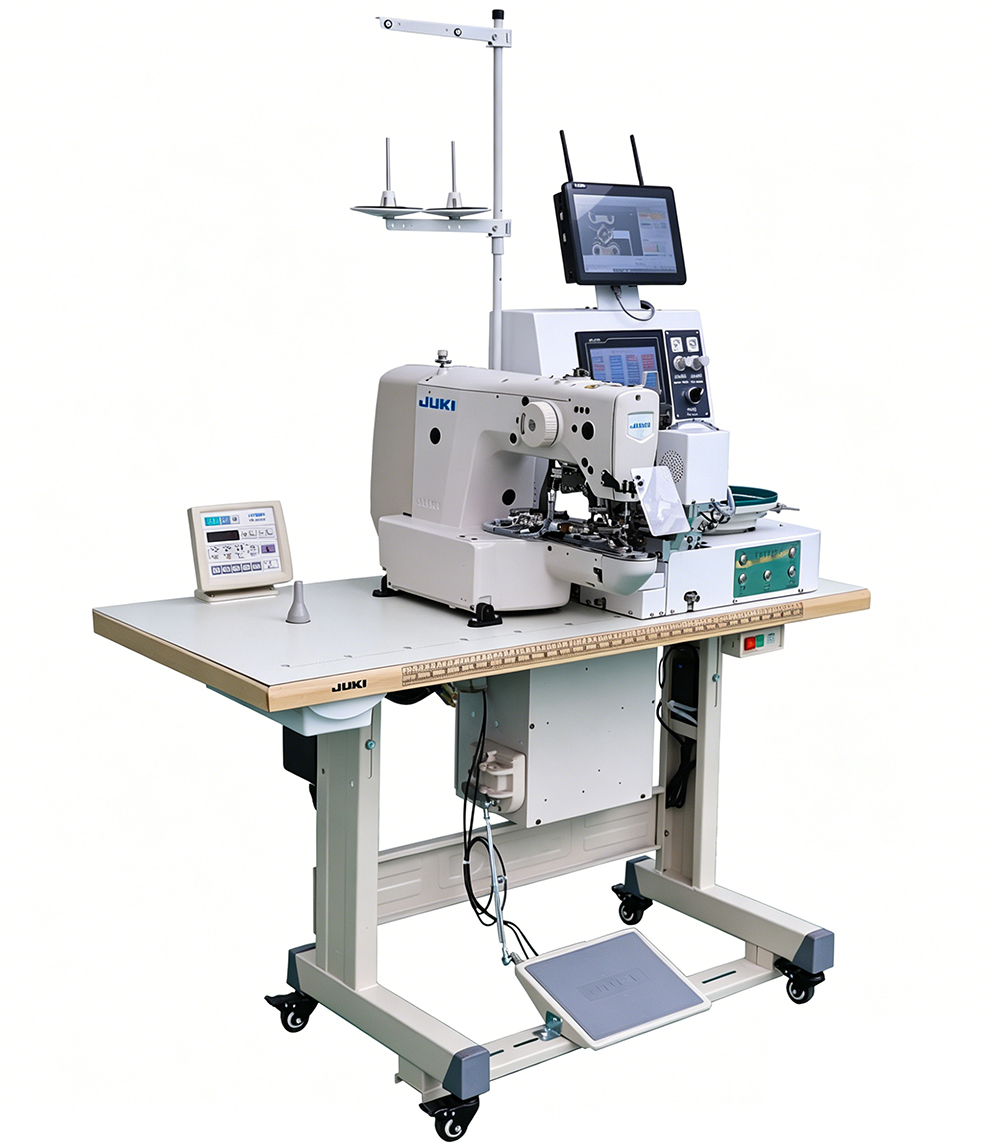

LF-SC-SP02字符识别送扣机

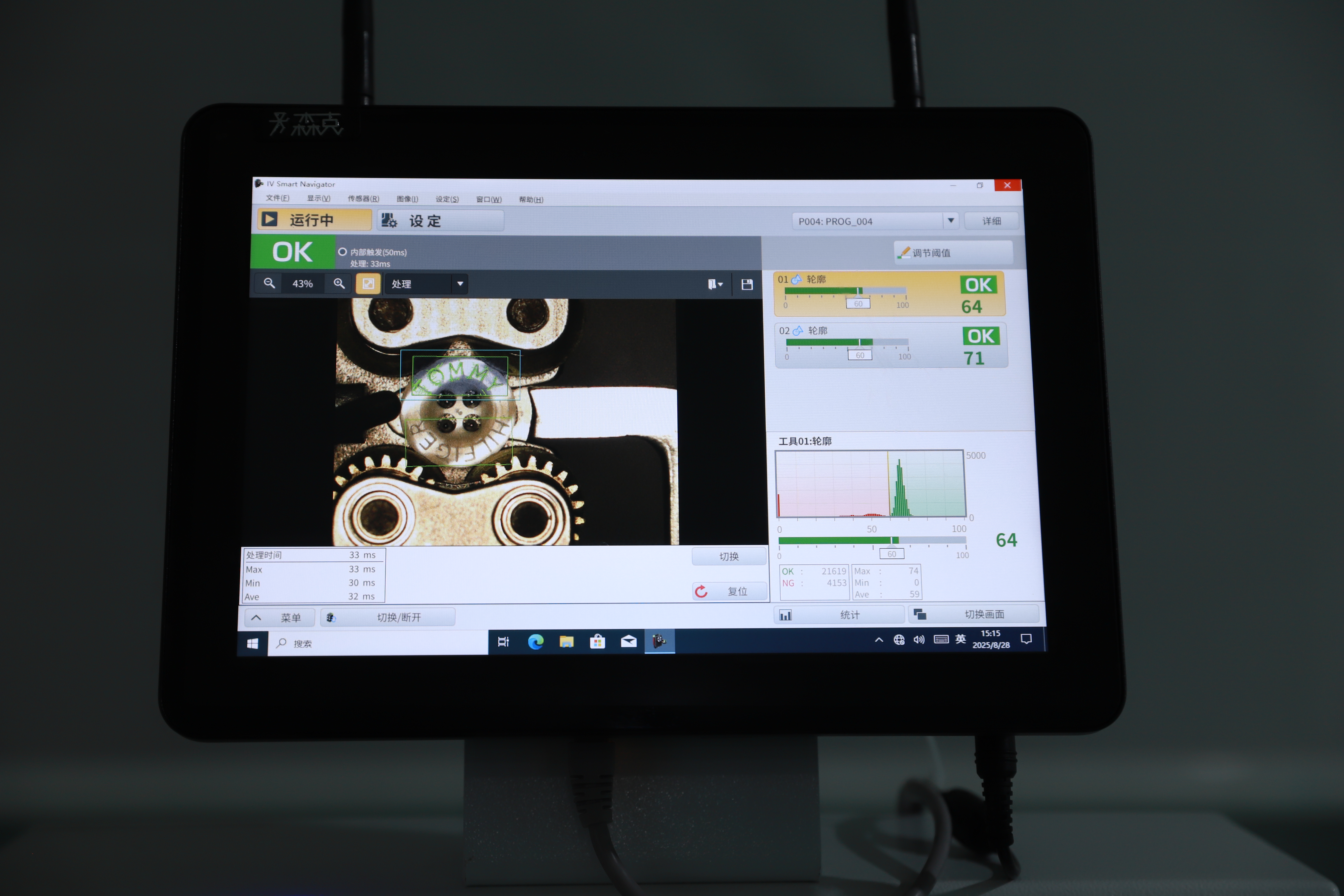

1.识别准确率高:采用专用视觉识别,速度更快,准确率更高High recognition accuracy: special visual recognition is adopted, which is faster and more accurate
2.高速识别送扣:12000-15000pcs/10h,速度快,并且准确率高达99.99%
High-speed identification and de livery: 12000-15000pcs/10h, fast, and the accuracy rate is as high as 99.99

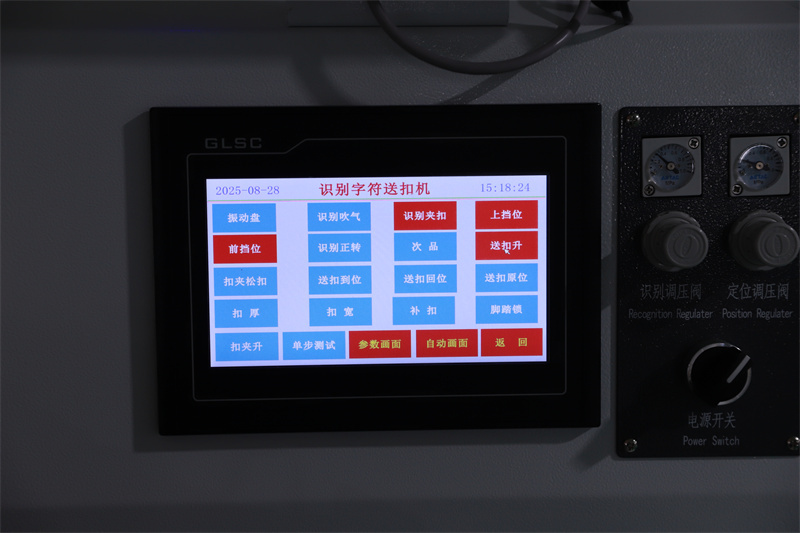

3.系统操作简单:自主开发操作系统,操作简单,上手快,系统稳定
Simple system operation: self-developed operating system simple operation, quick to getstarted, and the system is stable
4.模板储存量大:万条历史模板智能储存量,后续工作更便捷
Large storage capacity of templates Intelligent storage capacity of 10,000 historical templatesmakes subsequent work more convenient

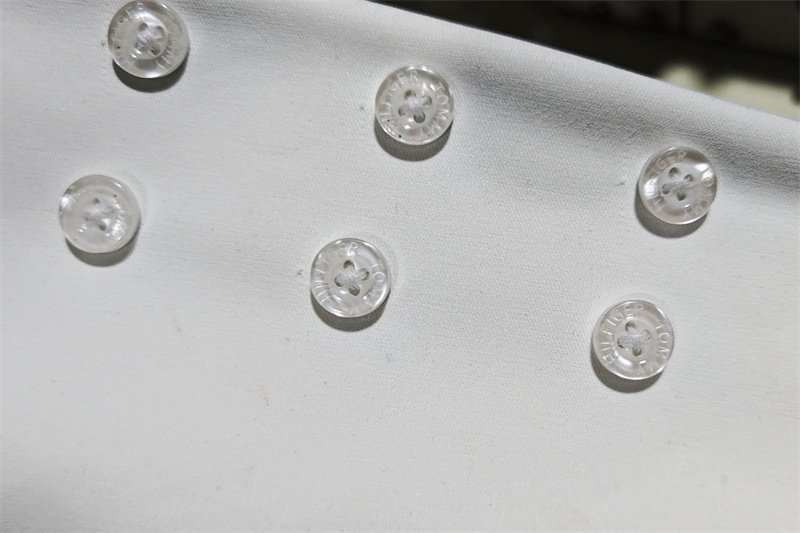

5.适用扣子广泛(普通扣子,字符扣子)
Applicable to a wide range of buttons (ordinary buttons, character buttons)

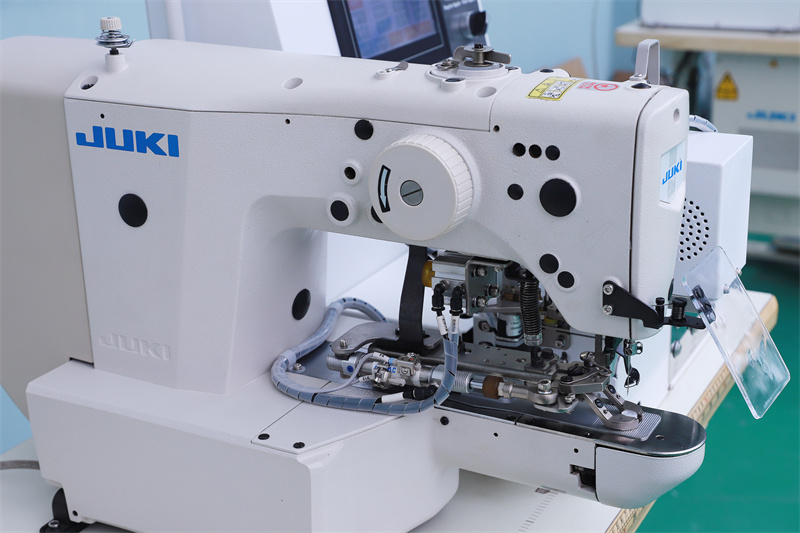

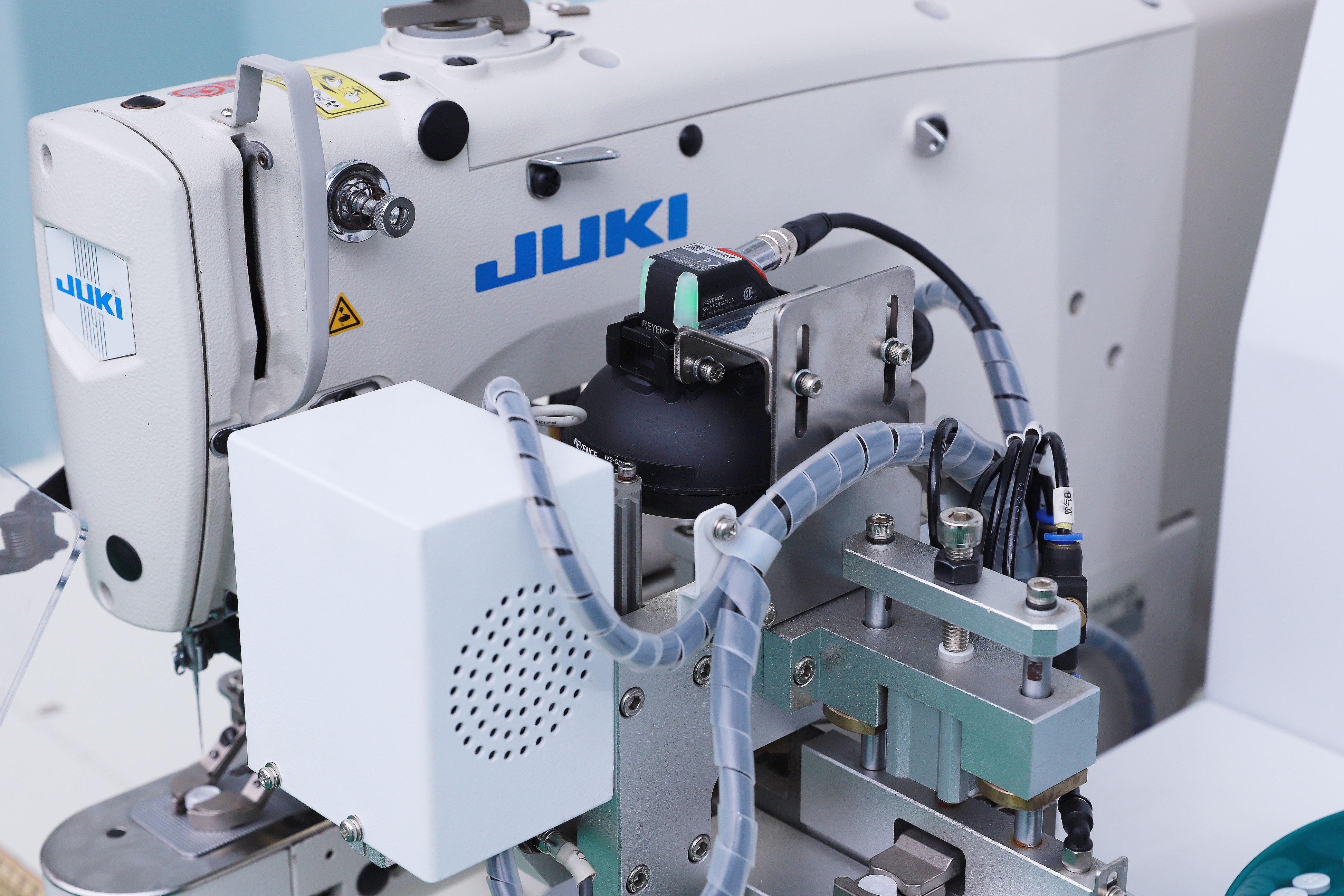

6.适配性广:全面支持重机,兄弟等多机型配套
Wide adaptability: Fullsupport for heavy machinery JUKI and Borther other multiple modedls
7.送扣速度快:取代人工送扣的多余工序,大幅度提升钉扣效率
Fast button delivery speed: replace the redundant process of manual button deliverygreatly improve the efficiency of button fastening
产品介绍







产品参数
| 型号 Model | LF-SC-SP02 |
| 额定功率 Rated Power | 50W |
| 使用气压 Air Pressure | 0.3-0.35Mpa |
| 额定电压 Rated Vol | 220V单相50Hz(必须有地线) 220V Single phase 50Hz(Earth wire is needed) |
| 送扣速度 Thread feeding speed | 12000-15000pcs/8h |
| 识别正确率 Recognition accuracy | 99.99% |
| 纽扣直径 Recognition accuracy | 10-20mm |
| 摄像头分分辨率 Camera resolution | 可选配Optional |
| 机器重量 Machine weight | 79kg |
| 机器尺寸 Machine measurement | 120cm(Length)X55cm(Width)X144cm(Height) |
