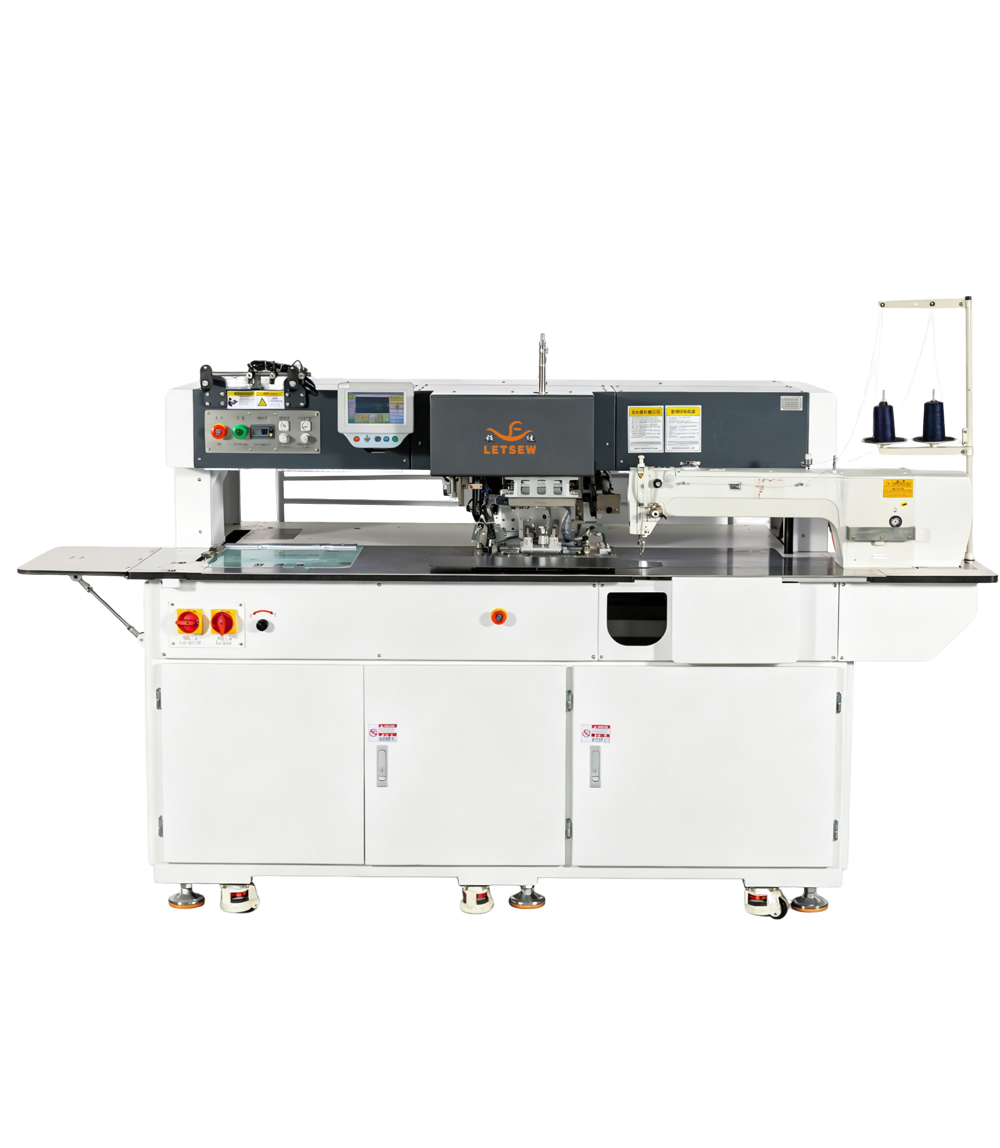

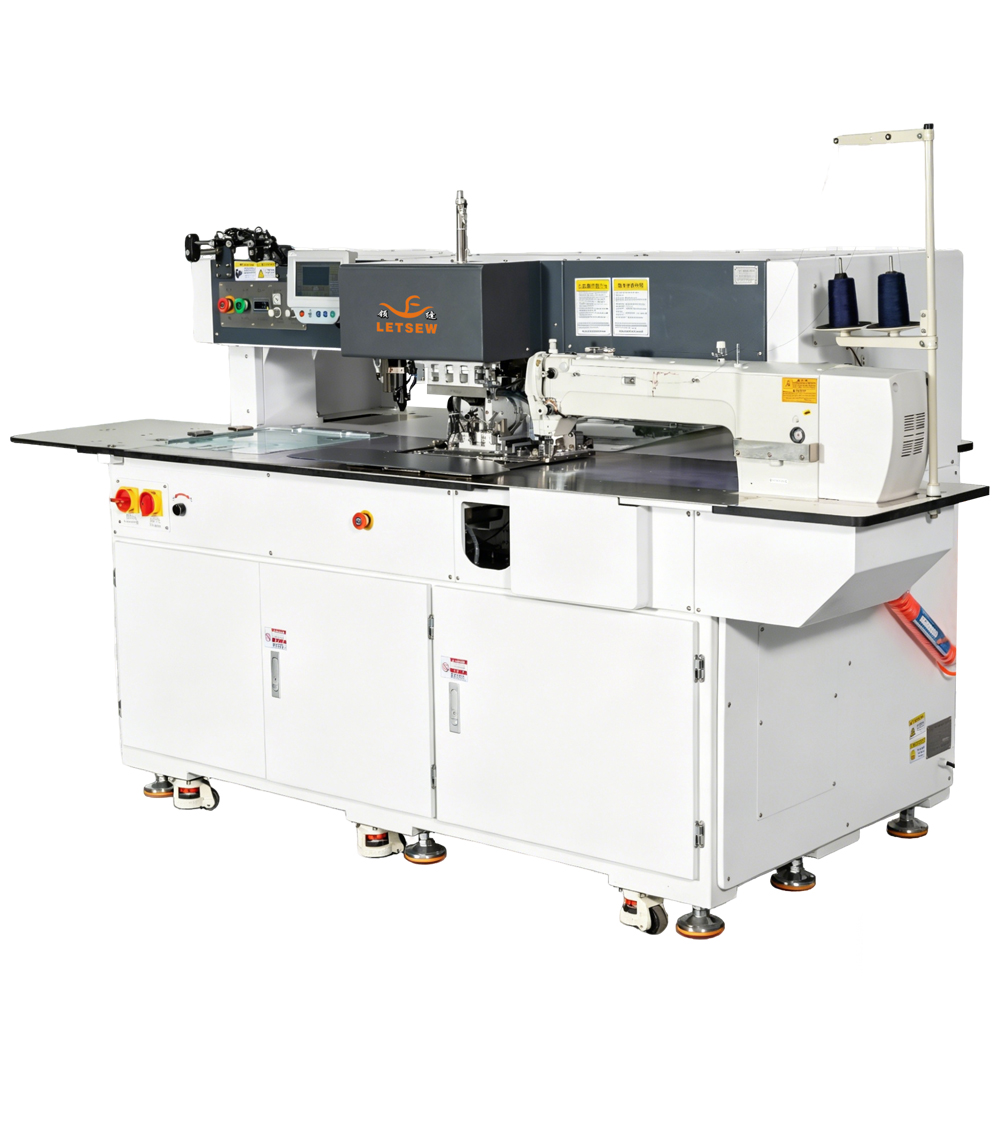

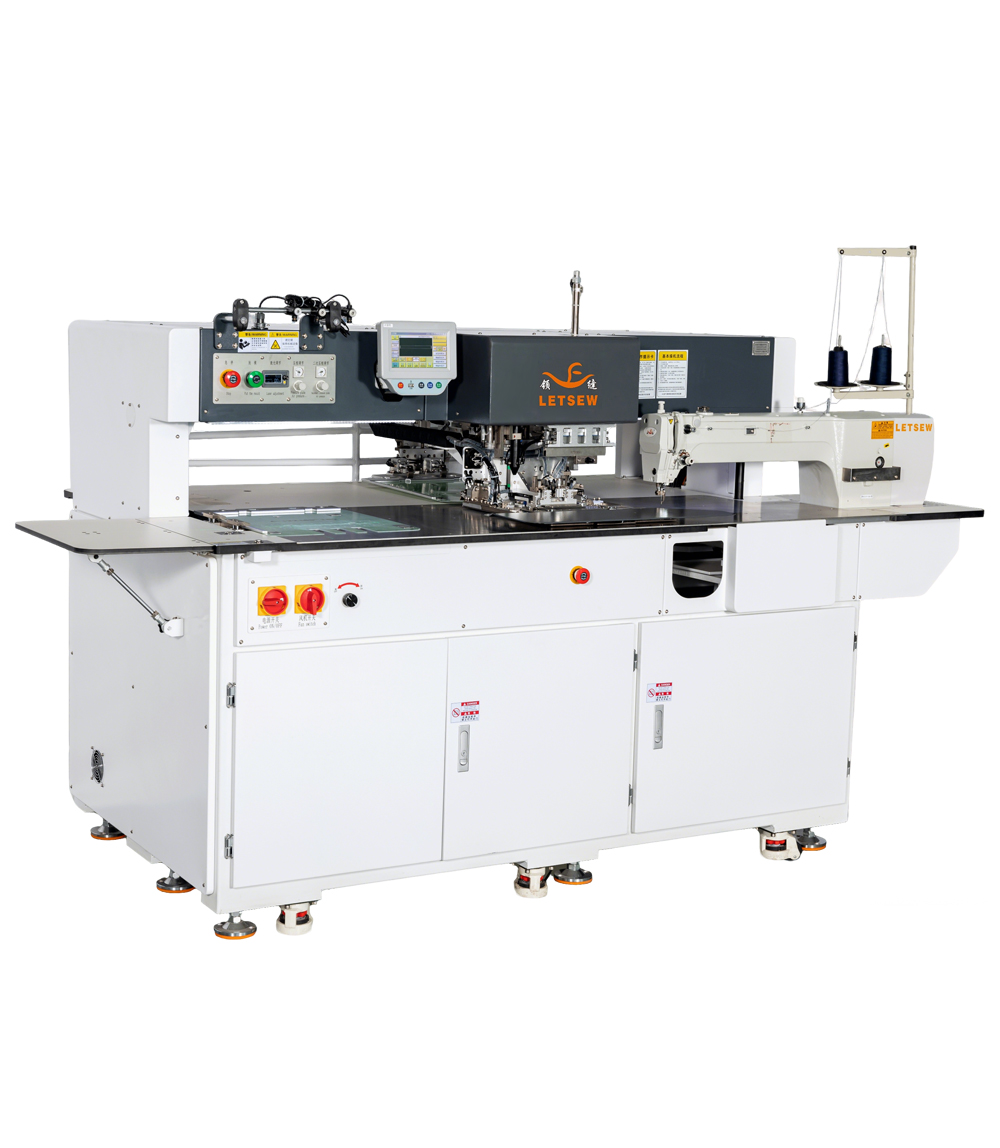

LF-C3 长臂机头款全自动开袋机

主要功能

1.尺寸可调节 快速换码
Adjustable size;  quick change of size
2.分体式内压框 止口更标准
Split type internal pressure frame, hem standard
3.加长托料板袋布不移位
Wider support plate;pocket fabric does not shif
4.紧贴台面折料避免频繁调机
Work close to the surface Avoid frequent adjustments
5.外折边结构稳定性更强
Outward folding edge structure stronger stability

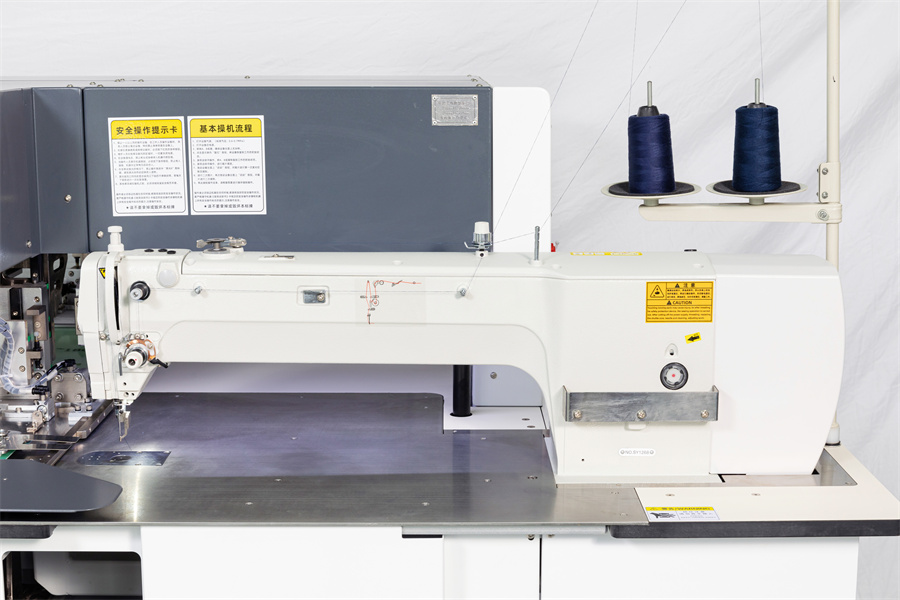

6.长臂机头操作空间更宽
Long-arm head Operating space is wider

产品介绍

LF-C3 全自动开袋机.png

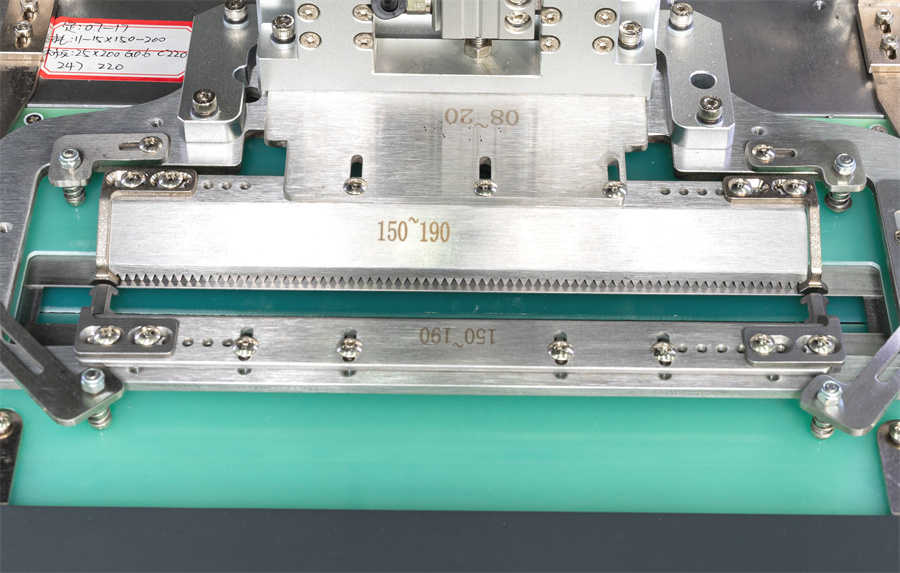

尺寸可调节 快速换码Adjustable size; quick change of size

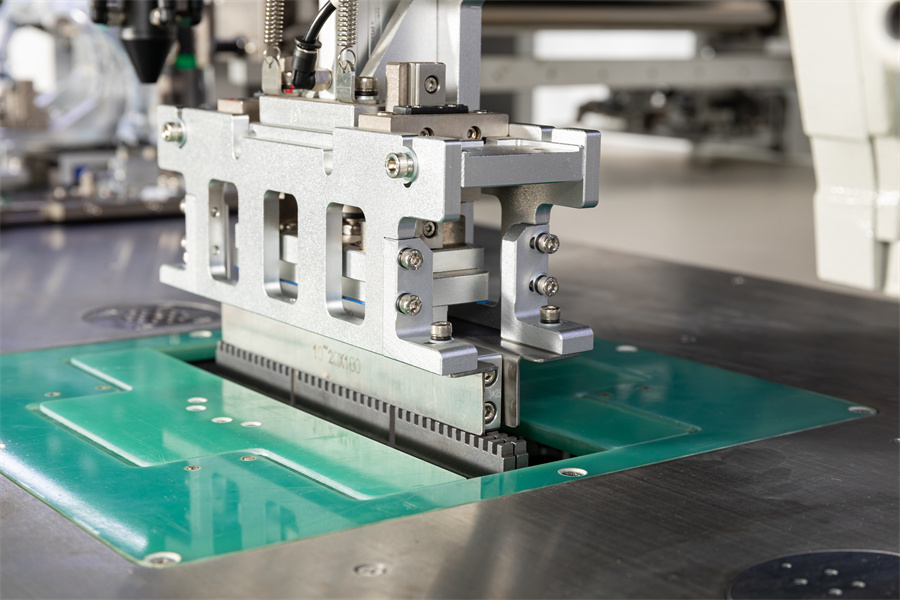

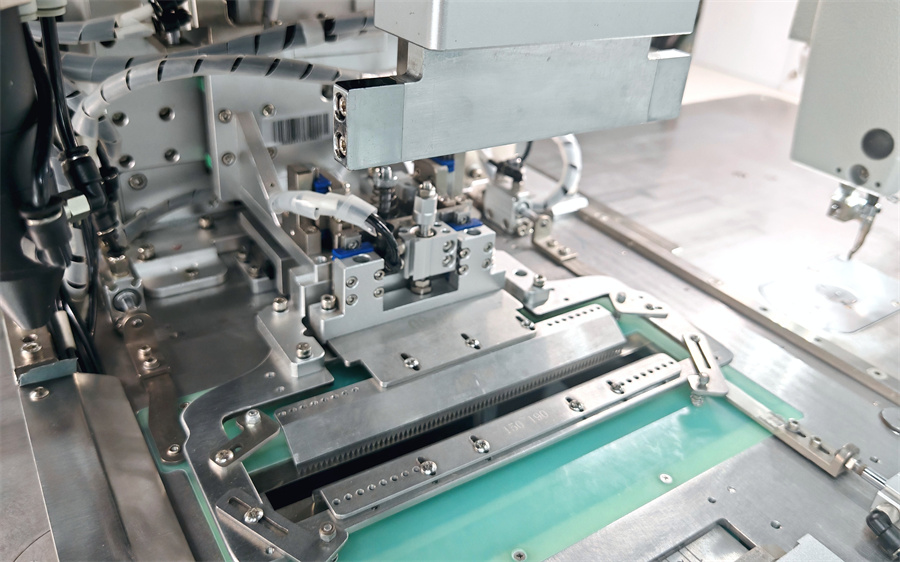

分体式内压框 止口更标准Split type internal pressure frame, hem standard.

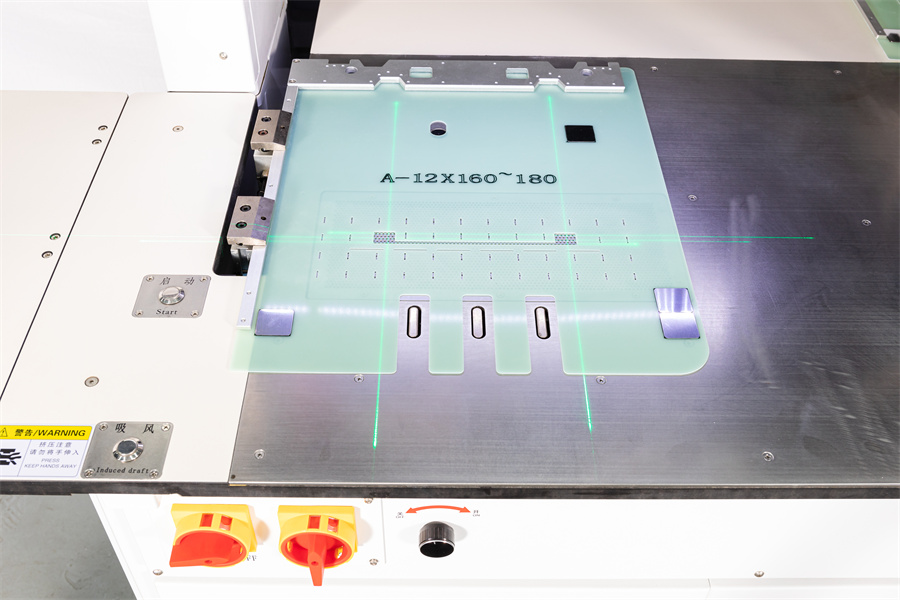

加长托料板袋布不移位Wider support plate;pocket fabric does not shif

紧贴台面折料避免频繁调机Work close to the surface Avoid frequent adjustments.

外折边结构稳定性更强Outward folding edge structure stronger stability

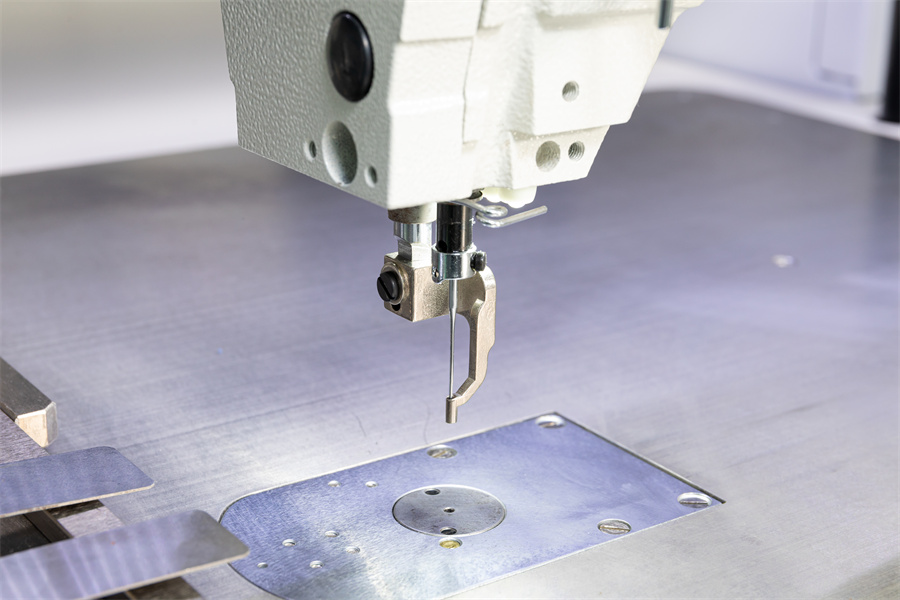

中压脚装置 线迹美观Mid-pressure foot device;Beautiful sewing stitch
尺寸可调节 快速换码Adjustable size; quick change of size
分体式内压框 止口更标准Split type internal pressure frame, hem standard.
加长托料板袋布不移位Wider support plate;pocket fabric does not shif
紧贴台面折料避免频繁调机Work close to the surface Avoid frequent adjustments.
外折边结构稳定性更强Outward folding edge structure stronger stability
中压脚装置 线迹美观Mid-pressure foot device;Beautiful sewing stitch

产品参数

型号 ModelLF-C3
额定功率 Rated power常规1.2kw(峰值:2.8kw) Regular 1.2kw (Peak: 2.8kw)
额定电压 Rated vol220V单相50Hz(有地线) 220V single phase 50Hz (with ground wire)
缝纫针距 Stitch length0.1mm-5mm
速度设定 Speed setting100-3000转/分钟100-3000rpm/min
缝纫机针 Sewing machine needleDpX17(9#-22#)
使用梭床 Shuttle bed摆梭 Pendulum, shuttle
压脚上升高度 Presser foot lift height0-25mm
激光功率 Laser power120W
主轴电机 Main shaft motor直驱式750W伺服电机 Direct drive 750W servo motor
控制系统 Control system微电脑控制 Microcomputer control
缝制范围 Sewing rangeWidth:0.8-4cm Length:3-22cm
缝制范围(定制) Customized sewing scopeWidth:0.8-1cm/2.5-4cm Length:3-7cm/20-22cm
使用气压 Air pressure0.6Mpa
机器净重 Machine N.W.1000kg
机器尺寸 Machine size230cm(Length)*130cm(Width)*143cm(Heigth)
