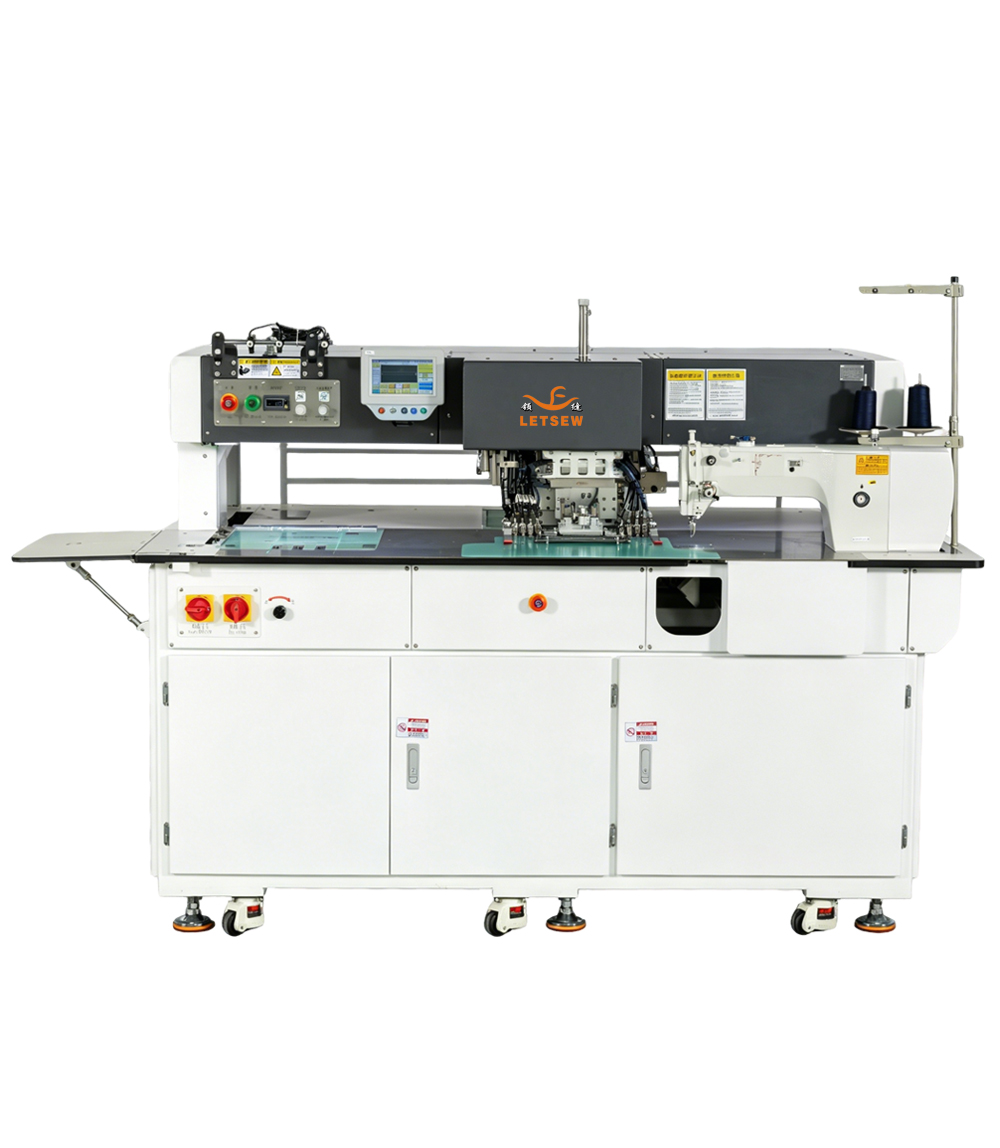

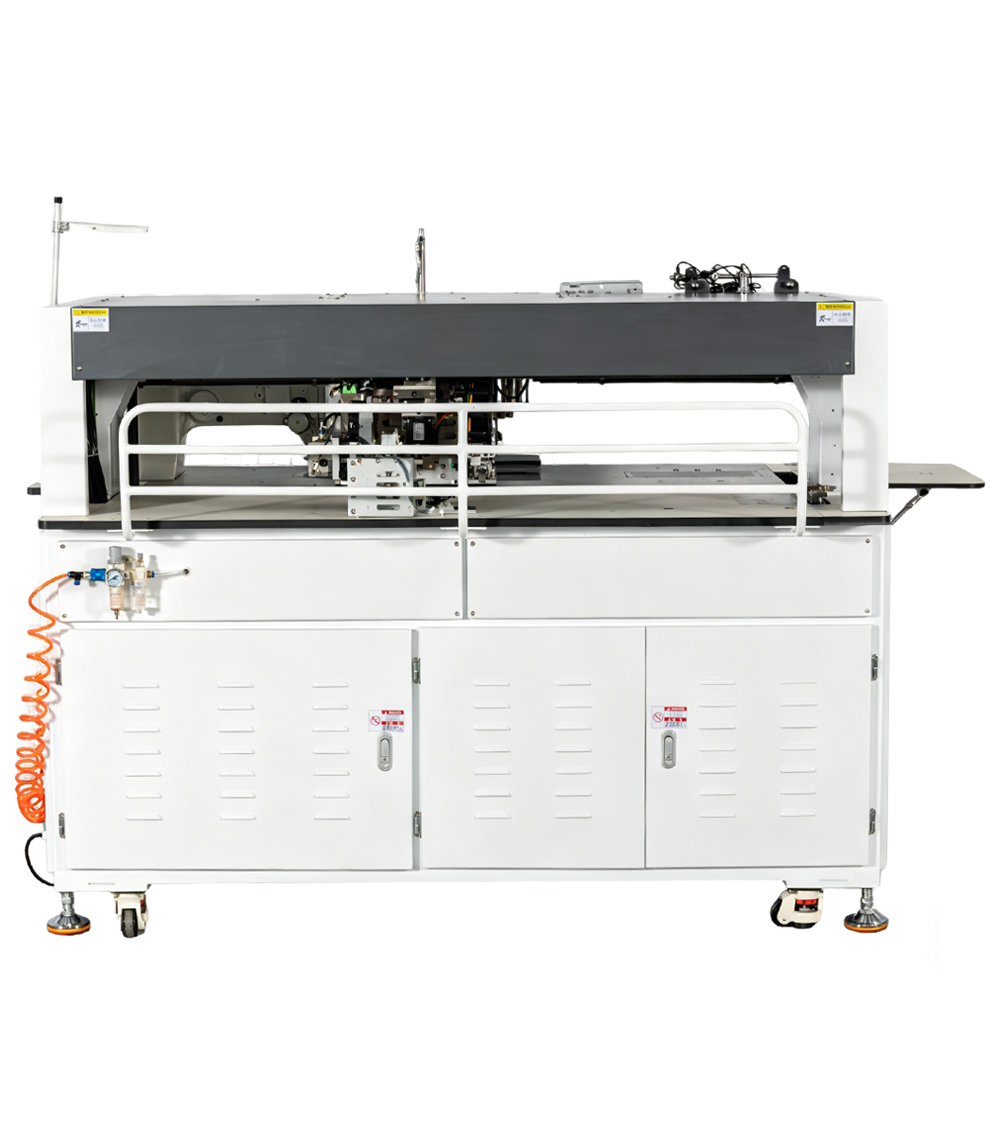

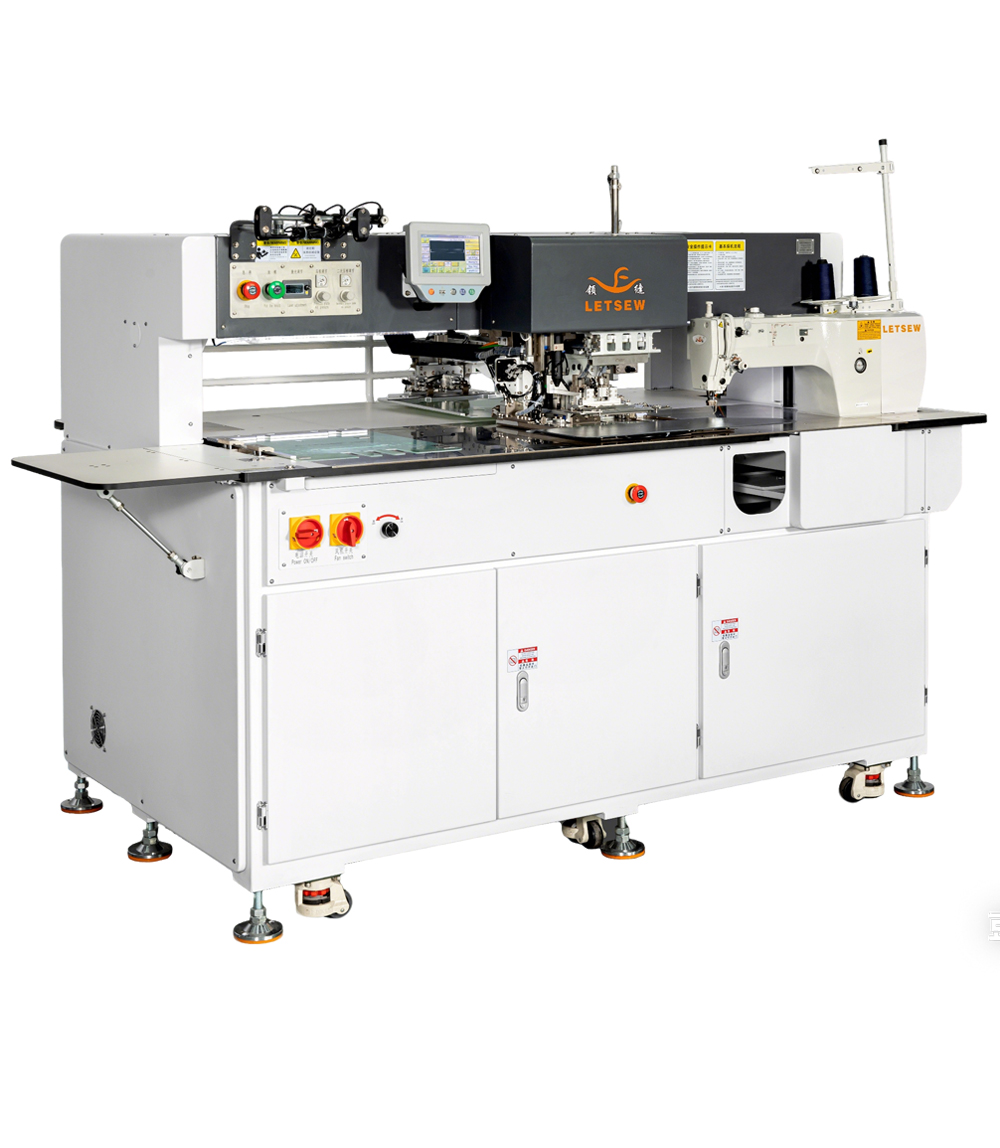

LF-Q7 全自动开袋机
主要功能
1. 明线车缝+打套结一次成型,无需人工翻袋;
Completes the sewing of the surface thread and finish bartack stitching
2. 带有吸风免烫功能;
With suction ironing function
3. 红外线定位;
Infrared positioning
4. 电脑快速打版,可存储图型;
Computer for quick plate making, can store patterns
5. 口袋尺寸可调节,快速换码;
Pocket size is adjustable, quick change of size
6. 缝制口袋速度:20-32秒/个;
Pocket sewing speed: 20-32 seconds/piece
7. 适用口袋类型:真假袋、单唇袋、双唇袋、拉链袋等。
Applicable pocket type: true and false pocket, single-lip pocket,double-lip pocket, zipper pocket, etc
产品介绍







产品参数
| 型号 Model | LF-Q7 |
| 额定功率 Rated power | 常规1.2kw(峰值:2.8kw) Regular 1.2kw (Peak:2.8kw) |
| 额定电压 Rated vol | 220V单相50Hz(有地线)220V single phase 50Hz (with ground wire) |
| 缝纫针距 Stitch length | 0.1mm-5mm |
| 速度设定 Speed setting | 100-3000转/分钟100-3000rpm/min |
| 缝纫机针 Sewing machine needle | DpX17(9#-22#) |
| 使用梭床 Shuttle bed | 摆梭 Pendulum, shuttle |
| 压脚上升高度 Presser foot lift height | 0-25mm |
| 激光功率 Laser power | 110W |
| 主轴电机 Main shaft motor | 直驱式750W伺服电机 Direct drive 750W servo motor |
| 控制系统 Control system | 微电脑控制 Microcomputer control |
| 缝制范围 Sewing range | Width:1.1-3.5cm Length:7-22cm |
| 缝制范围(定制) Customized sewing scope | Width:2.5-3.5cm Length:20-22cm |
| 使用气压 Air pressure | 0.6Mpa |
| 机器净重 Machine N.W. | 960kg |
| 机器尺寸 Machine size | 204cm(Length)*130cm(Width)*143cm(Heigth) |
