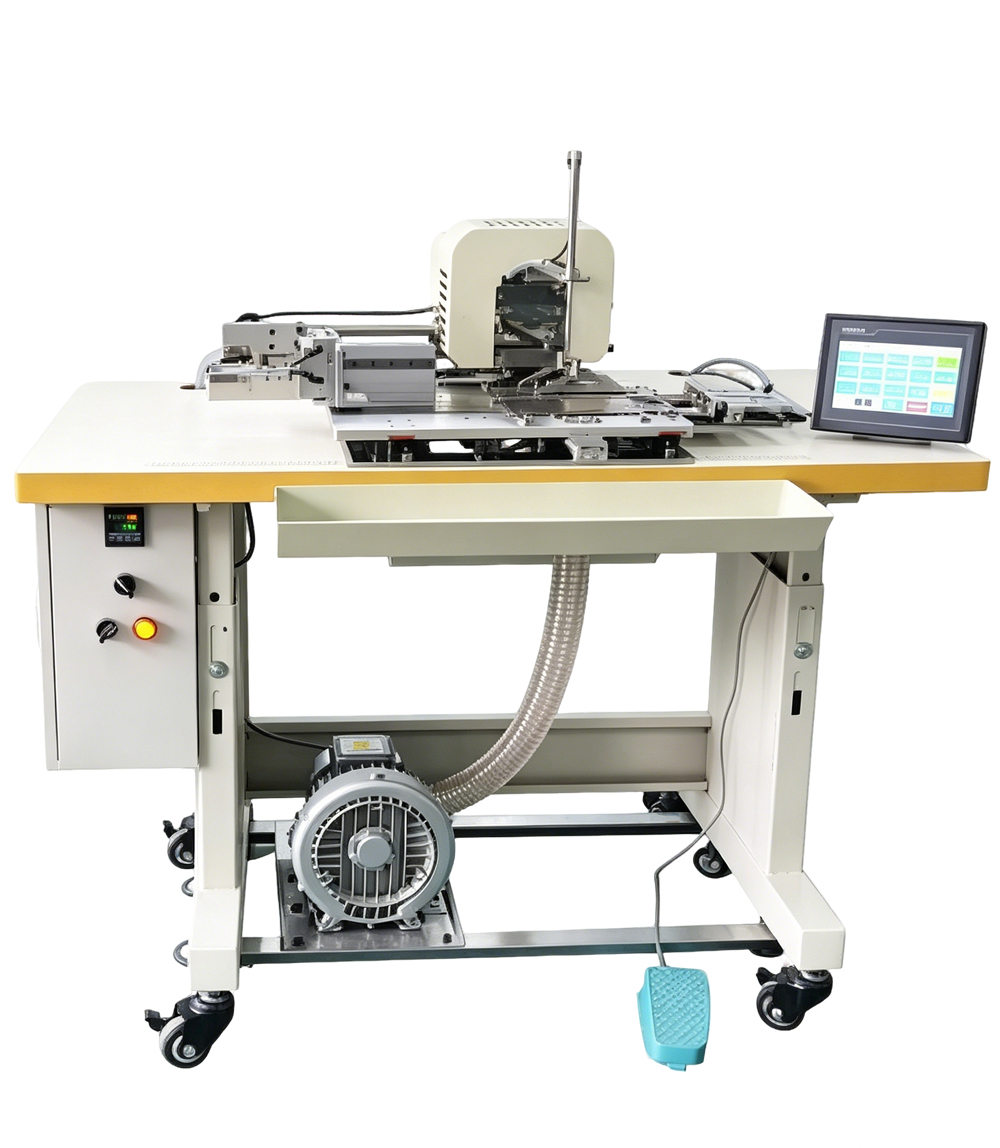

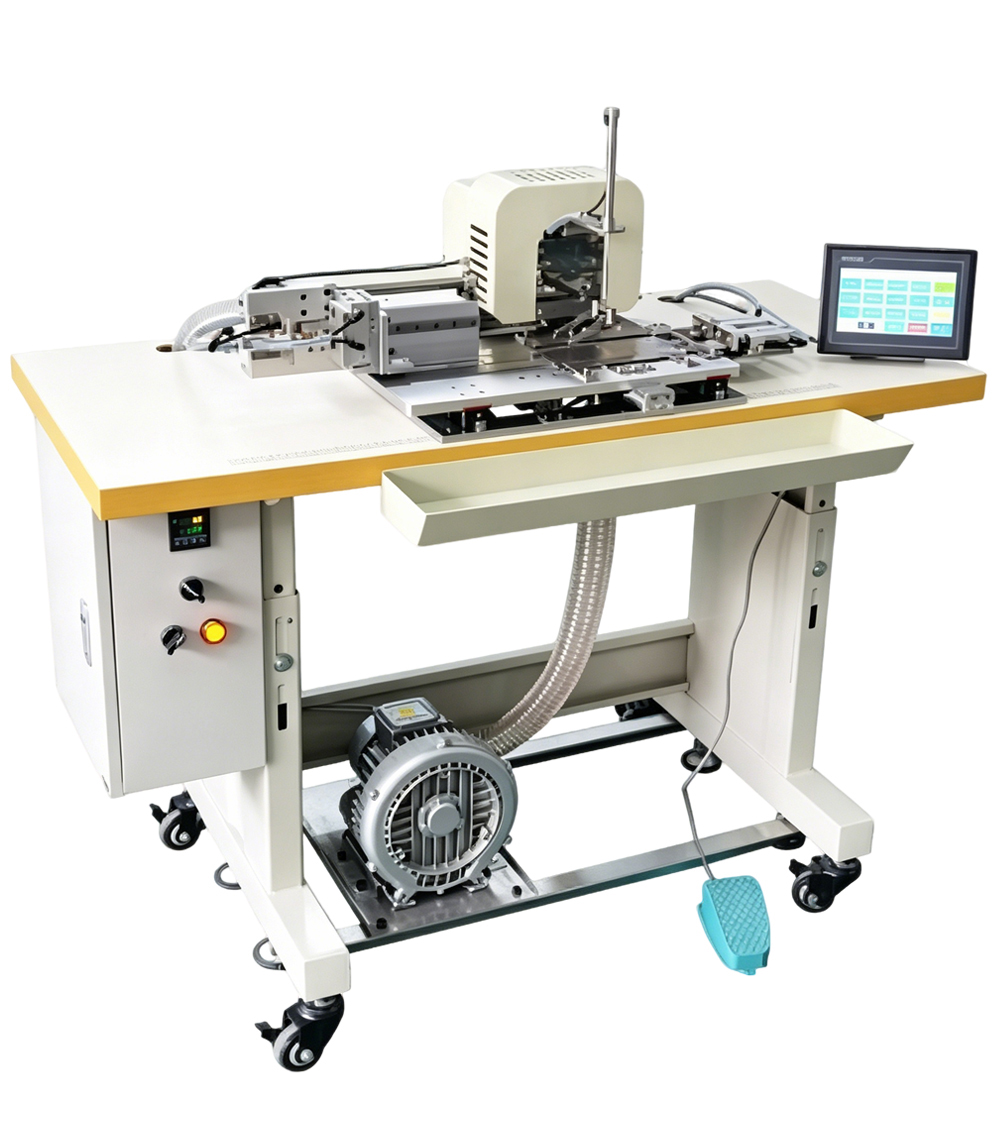

LF-TJ-XC02大袖叉烫机

主要功能

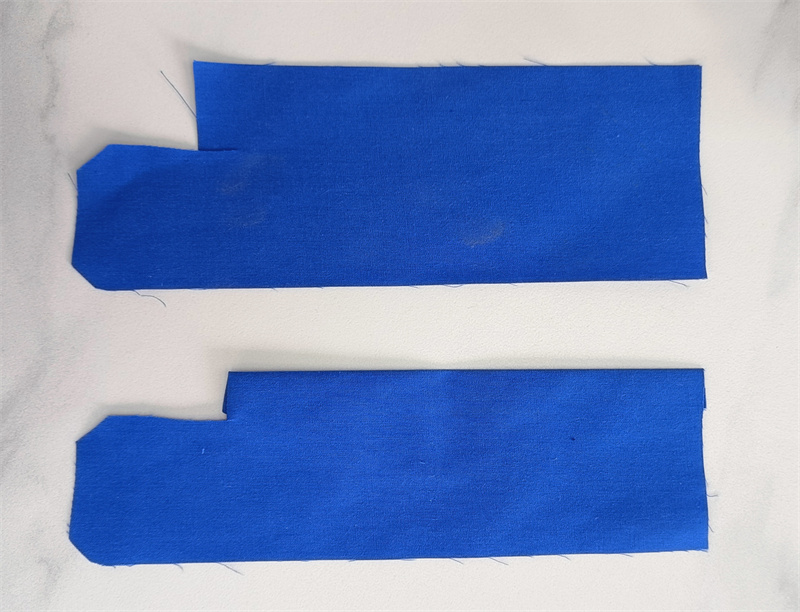

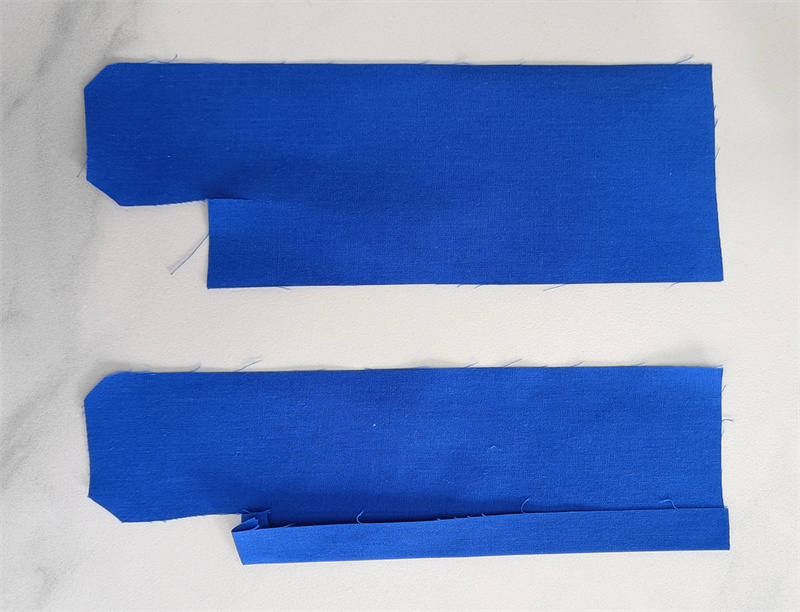

1.针对袖叉折烫工艺

For the sleeve and fork folding and ironing process

2.采用吸风装置,快速折烫定位

The suction device is adopted for quick folding and ironing positioning

3.适用面料广泛(普通衬衫面料、部分免烫衬衫面料、针织类面料等)

Applicable to a wide range of fabrics (ardinary shirting fabrics some non-iron shirting fabrics,knitted fabrics, etc)

4.一台机可实现左右袖叉大衩切换折烫,无需另制模具

One machine can realize switching, folding and ironing of left and rightsleeve slits and large slits, without the need for another mold

5.袖叉长度:100-210mm

Sleeve length: 100-210mm

播放
播放

产品参数

型号 ModelLF-TJ-XC02
额定功率 Rated Power950W
额定电压 Rated Vol220V单相50Hz(必须有地线) 220V Single phase 50Hz(Earth wire is needed)
使用气压 Air Pressure0.5Mpa
控制系统 Control SystemPLC控制
工作速度 Work Speed2800-3000pcs/8h
机器重量 Machine weight75kg
机器尺寸 Machine measurement120cm(Length)X70cm(Width)X115cm(Height)
