LF-J9 加长款 全自动开袋机

主要功能

1.明线车缝+打套结一次成型,无需人工翻袋。

Completes the sewing of thesurface thread and finish bartack stitching

2.带有吸风免烫功能

With suction ironing function

3.红外线定位

Infrared positioning

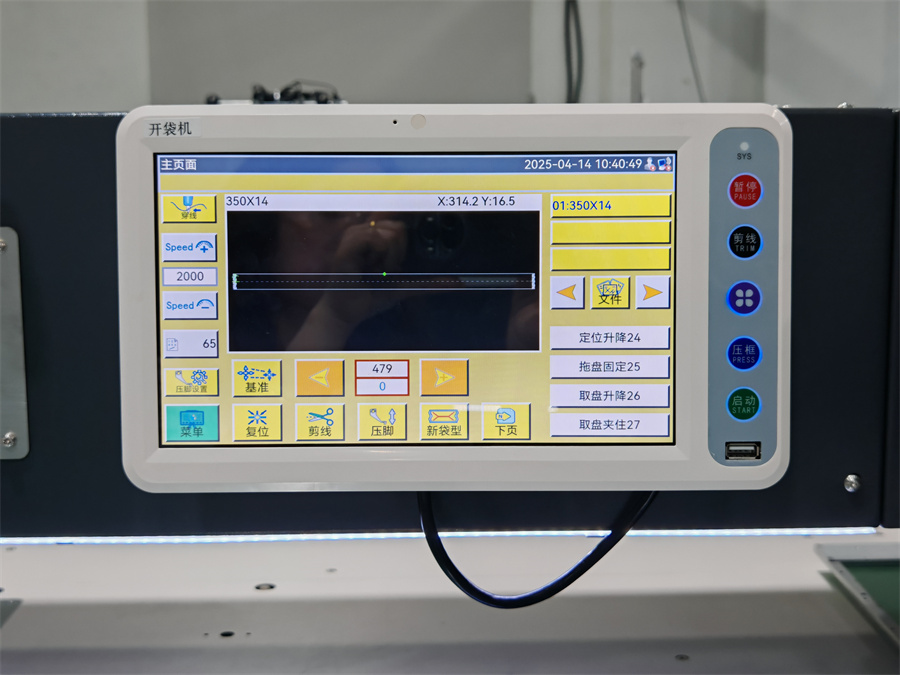

4.电脑快速打版,可存储图型

Computer for quick plate making, can store patterns

5.口袋尺寸可调节,快速换码

Pocket size is adjustable, quick change of size

6.适合各种服装、箱包类的长口袋,最长35cm

Long pockets suitable forvarious clothing, bags, etc, with a maximum leng th of 35cm

7.适用口袋类型:真假袋、单唇袋、双唇袋、拉链袋等

Applicable pocket type: true and false pocket, single-lip pocket,double-lip pocket, zipper pocket,etc


播放

产品参数

型号 ModelLF-J9
额定功率 Rated power常规1.2kw(峰值:2.8kw)Regular 1.2kw(Peak:2.8kw)
额定电压 Rated vol220V单相50Hz(有地线)220Vsingle phase 50Hz(with ground wire)
缝纫针距 Stitch length0.1mm-5mm
速度设定 Speed setting100-3000转/分钟  100-3000rpm/min
缝纫机针 Sewing machine needleDpX17(9#-22#)
使用梭床 Shuttle bed摆梭   Pendulum, shuttle
压脚上升高度 Presser foot lift height0-25mm
激光功率 Laser power120W
主轴电机 Main shaft motor直驱式750W伺服电机 Direct drive 750W servo motor
控制系统 Control system微电脑控制  Microcomputer control
缝制范围 Sewing rangeWidth:0.8-4cm  Length:3-22cm
使用气压 Air pressure0.6Mpa
机器净重 Machine N.W.1125kg
机器尺寸 Machine size204cm(Length)*130cm(Width)*143cm(Heigth)
