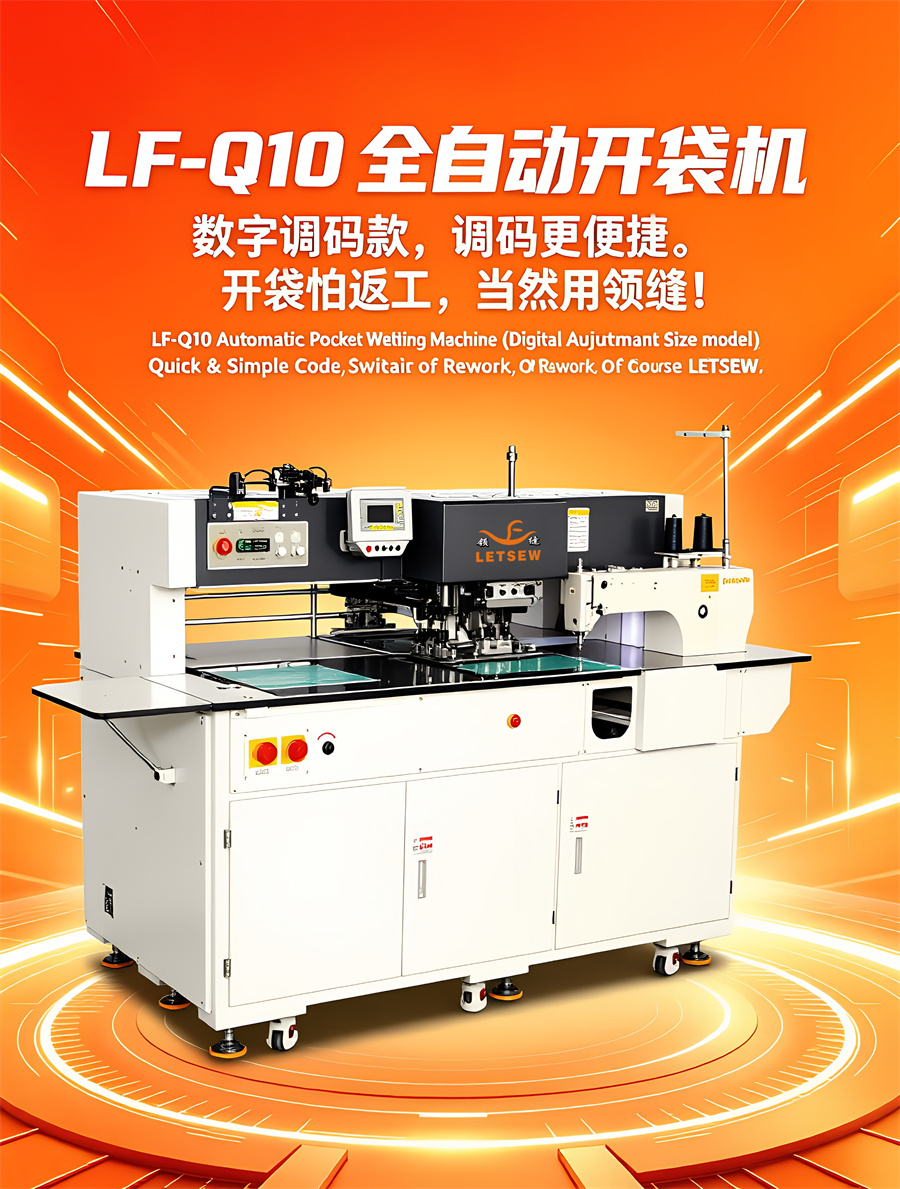

LF-Q10 全自动开袋机

主要功能

1.明线车缝+打套结一次成型,无需人工翻袋

Completes the sewing of the surface thread and finish bartack stitching

2.带有吸风免烫功能

With suction ironing function

3.红外线定位

Infrared positioning

4.电脑快速打版,可存储图型

Computer for quick plate making, can store patterns

5.口袋尺寸变化可数字自动调节,无需换模

Pocket size change can be digitally adjusted automatically,no need to change the mold.

6.缝制口袋速度:20-30秒/个

Pocket sewing speed: 20-32 seconds/piece

7.适用口袋类型:真假袋、单唇袋、双唇袋、拉链袋等

Applicable pocket type: true and false pocket, single-lip pocket,double-lip pocket, zipper pocket, etc

产品参数

型号 ModelLF-Q10
额定功率 Rated power常规1.2kw(峰值:2.8kw) Regular 1.2kw (Peak: 2.8kw)
额定电压 Rated vol220V单相50Hz(有地线) 220V single phase 50Hz (with ground wire)
缝纫针距 Stitch length0.1mm-5mm
速度设定 Speed setting100-3000转/分钟 100-3000rpm/min
缝纫机针 Sewing machine needleDpX17 (9#-22#)
使用梭床 Shuttle bed摆梭 Pendulum, shuttle
压脚上升高度 Presser foot lift height0-25mm
激光功率 Laser power120W
主轴电机 Main shaft motor直驱式750W伺服电机 Direct drive 750W servo motor
控制系统 Control system微电脑控制 Microcomputer control
缝制范围 Sewing rangeWidth:0.8-4cm Length:3-22cm
缝制范围(选配) Optional sewing rangeWidth:0.8-2cm, 2-3cm, 3-4cm, Length:7-20cm,7-22cm; (可调范围:0-2cm) Adjustable space (0-2cm)
使用气压 Air pressure0.6Mpa
机器净重 Machine N.W.960kg
机器尺寸 Machine size204cm(Length)*130cm(Width)*143cm(Heigth)
